FM 200 Fire Suppression System Price in Pakistan

Fire safety is a critical concern in Pakistan, as it is in many parts of the world. To protect lives and valuable assets from the devastating effects of fire, advanced fire suppression systems like FM 200 are becoming increasingly popular. In this comprehensive guide, we will explore the FM 200 fire suppression system, its specifications, components, advantages, disadvantages, pricing in Pakistan, and how to obtain it. Universal Fire Protection, a trusted name in the fire safety industry, is your go-to source for all your fire suppression needs.

Fire Suppression System

A fire suppression system is designed to control and extinguish fires in an enclosed area. These systems are crucial for protecting property, valuable assets, and, most importantly, lives. Fire suppression systems come in various types, including water-based, gas-based, and foam-based systems, each suited to different fire hazards and environments.

fire suppression system

FM 200 System Specification

FM 200 is a clean agent fire suppression system, widely recognized for its effectiveness in protecting high-value assets and critical infrastructure. Here are some key specifications of FM 200 systems:

  • Agent: FM 200 (HFC-227ea)
  • Chemical Name: Heptafluoropropane
  • Agent Density: 1.55 kg/m³ (at 25°C)
  • Agent Pressure: 25 bar (360 psi) at 21°C
  • Discharge Time: Typically 10 seconds
  • Nozzle Type: Various types, including directional and aspirating

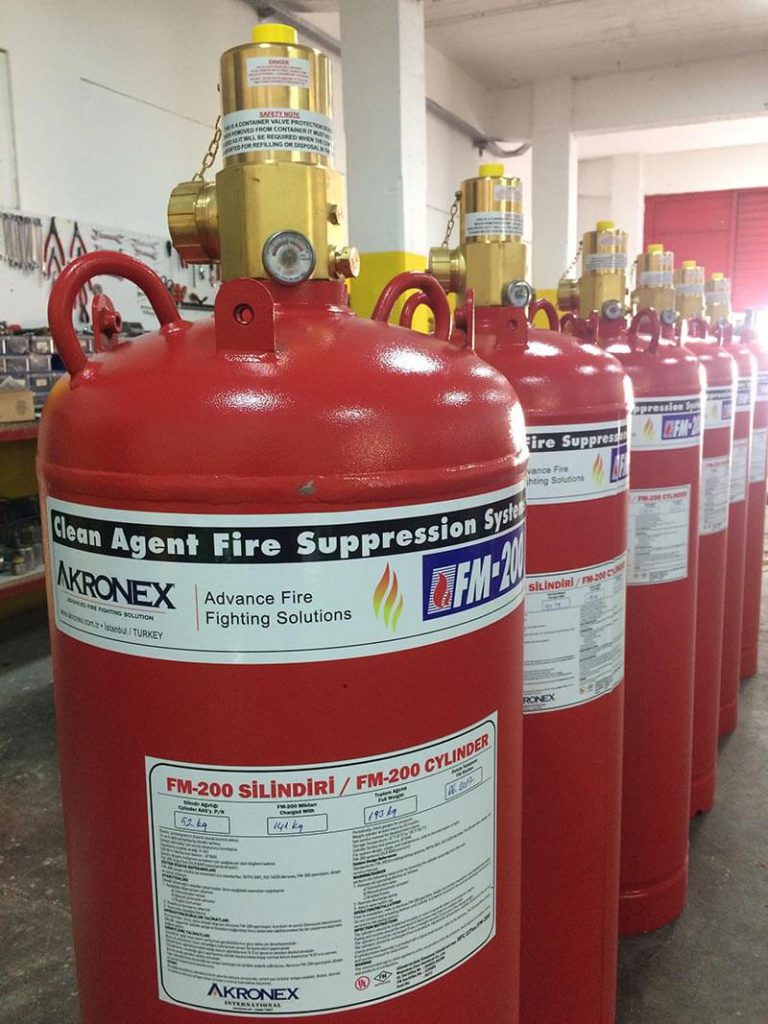

  • Storage: Pressurized cylinders or tanks

FM 200 Fire Suppression System Components

FM 200 fire suppression systems consist of several key components:

1. FM 200 Agent Storage

FM 200 is stored in high-pressure cylinders or tanks. These containers are designed to withstand the pressure and temperature conditions required for FM 200 to function effectively.

2. Discharge Nozzles

Discharge nozzles are strategically placed throughout the protected area. They release FM 200 when a fire is detected.

3. Detection and Control Panel

A detection and control panel monitors the protected area for signs of fire. When a fire is detected, the panel triggers the release of FM 200 and may also activate alarms and notifications.

4. Piping

Piping connects the agent storage to the discharge nozzles, ensuring even distribution of FM 200 throughout the protected area.

FM 200 Fire Suppression System: How It Works

FM 200 works by interrupting the combustion process. When a fire is detected, the control panel activates the system. FM 200 is discharged as a gas, filling the protected area and reducing the oxygen concentration to a level where combustion cannot be sustained. Essentially, it removes the heat element of the fire triangle (fuel, heat, and oxygen), effectively suppressing the fire.

FM 200 Advantages

FM 200 is chosen for fire suppression due to several distinct advantages:

1. Rapid Suppression

FM 200 suppresses fires quickly, reducing the risk of extensive damage and minimizing downtime.

2. Clean Agent

FM 200 leaves no residue, making it ideal for protecting sensitive electronic equipment, data centers, and valuable assets.

3. Safe for Occupants

FM 200 is safe for humans at specified concentrations, allowing time for evacuation in the event of a fire.

4. Environmentally Friendly

FM 200 has a low environmental impact and does not contribute to ozone depletion.

5. Space-Efficient

The storage cylinders for FM 200 are relatively compact, saving valuable space in protected areas.

6. Suitable for Various Applications

FM 200 is versatile and can be used in a wide range of applications, including commercial spaces, industrial facilities, and cultural institutions.

FM 200 Disadvantages

While FM 200 offers numerous advantages, there are some drawbacks to consider:

1. Cost

FM 200 systems can be more expensive to install and maintain compared to traditional water-based sprinkler systems.

2. Limited Cooling Effect

FM 200 does not provide the cooling effect of water-based systems, which can be important for some types of fires.

3. Limited Storage Time

FM 200 has a limited storage time in the atmosphere, so it should be used within a certain timeframe.

FM 200 System Full Form

FM 200 stands for “FireMaster 200.”

What Is the Chemical Name for FM 200 Gas?

The chemical name for FM 200 gas is “Heptafluoropropane.” It is an environmentally friendly, halocarbon-based clean agent fire suppressant.

Is FM 200 Gas Dangerous?

FM 200 gas is generally considered safe for human exposure within specified concentrations. However, exposure to elevated concentrations of FM 200 can cause respiratory irritation, so it is essential to evacuate the protected area if the system is activated. Proper training and safety measures should be in place when working with FM 200 systems.

What Is the Difference Between FM 200 and Novec 1230?

FM 200 and Novec 1230 are both clean agent fire suppressants, but they have some differences:

  • Chemical Composition: FM 200 is Heptafluoropropane (HFC-227ea), while Novec 1230 is a fluorinated ketone (FK-5-1-12).
  • Environmental Impact: Novec 1230 has a lower global warming potential than FM 200, making it a more environmentally friendly option.
  • Discharge Time: FM 200 typically has a shorter discharge time compared to Novec 1230.
  • Use Cases: Both agents are suitable for a wide range of applications, but the choice between them depends on specific requirements and environmental considerations.

FM 200 Price

The price of an FM 200 fire suppression system in Pakistan can vary significantly depending on various factors, including the size of the protected area, the complexity of the installation, the amount of FM 200 required, and the chosen components. It is recommended to contact Universal Fire Protection for a customized quote based on your specific needs.

How to Get an FM 200 Fire Suppression System in Pakistan

Obtaining an FM 200 fire suppression system in Pakistan is a multi-step process:

1. Assessment and Consultation

Contact Universal Fire Protection to schedule an assessment of your fire suppression needs. Our experts will evaluate your premises, assess fire hazards, and recommend the appropriate FM 200 system configuration.

2. Customized Proposal

Universal Fire Protection will provide you with a customized proposal that includes details of the FM 200 system design, components, installation, and associated costs.

3. Installation

Once the proposal is accepted, our skilled technicians will install the FM 200 system according to the design specifications and industry standards.

4. Training

Universal Fire Protection offers training for your staff on the proper use and maintenance of the FM 200 system.

5. Maintenance and Servicing

Regular maintenance and servicing of the FM 200 system are essential to ensure its reliability. Universal Fire Protection provides comprehensive maintenance packages to keep your system in optimal condition.

6. Compliance and Certification

Universal Fire Protection will ensure that your FM 200 system complies with all relevant safety regulations and standards, providing you with the necessary certifications.

FAQs

Q1: What is the shelf life of FM 200 gas?

FM 200 gas has a shelf life of approximately 20 years when stored properly in pressurized cylinders.

Q2: Can FM 200 be used in residential settings?

Yes, FM 200 can be used in residential settings, especially in areas where water-based fire suppression systems are not suitable, such as computer rooms and home theaters.

Q3: Are FM 200 systems environmentally friendly?

FM 200 is considered environmentally friendly as it has a low global warming potential and does not deplete the ozone layer.

Q4: How often should FM 200 systems be inspected?

FM 200 systems should be inspected annually by qualified technicians to ensure they are in proper working condition.

Q5: Can FM 200 be used in historical or cultural heritage buildings?

Yes, FM 200 is often chosen for the protection of historical and cultural heritage buildings due to its effectiveness and minimal impact on valuable artifacts and structures.
