Reliable Sprinkler System

Reliable Sprinkler System

Product Description:

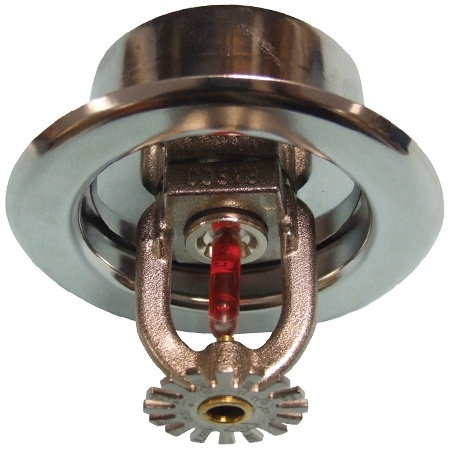

Reliable Sprinkler System in Pakistan Models F156-300 Upright, Pendent, and Recessed Pendent Sprinklers are high-pressure rated automatic sprinklers that can handle a maximum service pressure of 300 psi (20,7 bar). The Model F156-300 glass bulb sprinkler combines durability with the attractive low profile of a decorative sprinkler. Whether installed on exposed piping or below an office ceiling, it is functional and attractive. The Model F1 Series Recessed Escutcheon provides convenient adjustment for Model F156-300 Sprinklers. The two-piece construction makes field installation an easy and rapid task. This also allows ceiling panels to later be removed without shutting down the fire protection system, thus facilitating the maintenance of above-ceiling services. The Models F156-300 Upright, Pendent, and Recessed Pendent automatic sprinklers are standard response sprinklers that utilize a 5.0mm frangible glass bulb. The glass bulb contains an accurately controlled amount of special fluid hermetically sealed inside.

The other sprinkler parts are made of brass, copper, or beryllium nickel. However, At normal temperatures, the glass bulb contains fluid in both the liquid and vapor phases. The vapor phase can be seen as a small bubble. As heat is applied, the liquid expands, forcing the bubble smaller and smaller as the liquid pressure increases. But continued heating forces the liquid to push out against the bulb, causing the glass to shatter, opening the waterway and allowing the deflector to distribute the discharging water.

Sprinkler Types:

• Upright
• Pendant
• Recessed Pendant F1/F2/FP

Reliable…For Complete Protection :

Reliable Sprinkler System offers a wide selection of sprinkler components. Following are some of the many precision-made Reliable products that guard life and property from fire around the clock.

Benefits of sprinkler system

• Environmental Protection

Fire sprinkler system provides a specific environmental advantage beyond a primary role. However, this system resists greenhouse gas emissions by up to 97.8%. Water use during the fire helps to remove the smoke and pollutants.

• Quick Repairs

A sudden damage occurs to the sprinkler system. Don’t you need to worry about this? Restoring and maintaining a sprinkler system can save your residential and commercial properties.

• Cost – Effective

Sprinkler systems can be cost-effective under specific conditions. Reliable sprinkler systems provide significant safety benefits and potential insurance saving their costs. In addition, It often provides a more economical alternative to constructing additional firewalls while providing fire protection. A well-designed sprinkler system saves time, money, and effort.

Reliability of the sprinkler system

The reliability of the Sprinkle system depends on various standards like operational and performance reliability. Experiments have shown that properly designed and maintained systems reduce fire damage. For example

• The Universal Fire Protection highlights that wet pipe systems are generally the most reliable and cost-effective choice for most applications
• Statistics indicate that buildings equipped with automatic sprinkler systems experience reduced rates of fire-related deaths and property loss compared to those without such systems

Factors affecting the reliability

• Maintenance

  If you want to maintain the functionality and performance of a reliable sprinkler system. You must want the regular inspection and maintenance regularly, monthly, and yearly. Moreover, regularly clean the head and pipes of the sprinkler system to prevent blockage and reduce the issues.

Regular tests of the system pressure, water flow, and alarm system to maintain the required functionality.

• Environmental Conditions

The first element which affects the reliability of the sprinkler system is the temperature range. But In cold environments, the pipes of the system freeze, and on the other hand in hot environments, sometimes due to extreme temperature the sprinkler system is damaged leading to resistance to the functionality of the system.

Corrosion Environment can disturb the performance of the pipes and their components. But In this condition, They use corrosion-resistant material.

 .

• Design of System

The design of the system is manufactured in this way to cover the entire area. Low-density sprinkler decreases reliability and some areas are unprotected. But in this case, the universal Fire Protection instructions on the appropriate spacing and sprinkler coverage depend on the type of hazard present.

The water distributor is designed to distribute water evenly throughout the system. However, This layout plays a vital role in this regard to detect the flow requirements and pressure needs.

• Human Factors

Sometimes, human errors occur during operations, such as accidentally turning off the system or micro-material setting. Another reason is that people may not respond to Fire alarms or Sprinkler activation warnings, resulting in a low response time, which reduces the system’s performance.
