Addressable Fire Detection And Fire Systems

Maxlogic Intelligent Addressable
Fire Detection And Fire Systems

Addressable Fire Detection And Fire Systems With its VIP communication protocol and microprocessor-controlled design, Maxlogic & Mavigard intelligent addressable fire detection and alarm systems, which have superior and stable operating performance, ease of installation and operation, offer suitable solutions for projects with variable features.

  • Production with Surface Mounting Technology.
  • Protection from electromagnetic interference.
  • Easy setup and use with user-friendly and aesthetic design.
  • Software addressing ease with addressing device.
  • Easy programming of the panel and connected input-output devices with the LoopManager software.
  • The possibility of contamination control.
  • Interrupt feature to cut off the loop query enabling fire alarm detection within 1.5 seconds.
  • The ability to program the smart addressable detectors, buttons, and zone control modules in the system based on a cause-and-effect logic, enabling them to respond to comprehensive fire scenarios.
  • Compatibility with RS-232, RS-485, TCP/IP, GPRS, and MODBUS/BACnet
    protocols.

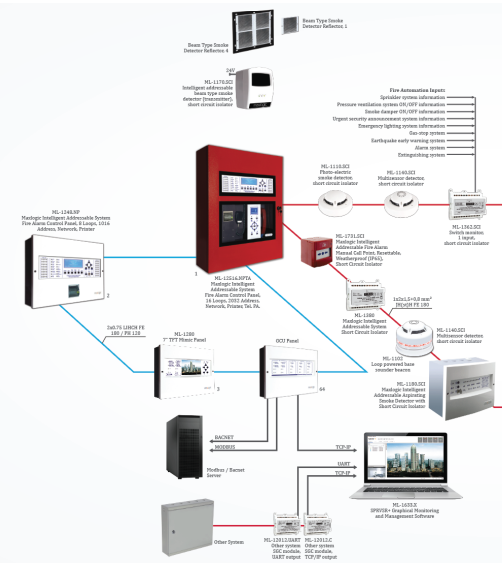

  • Up to 64 panels and/or repeater panels can be assembled with CAN protocol into a network.
  • By the help of this feature, the  Maxlogic & Mavigard system is used easily in big buildings, hospitals, universities, etc, projects.
  • Ma 130.048 devices can be used in the Maxlogic Addressable Fire Detection System.
  • Events can be monitored from any panel in the Network.
  • Controlling all other panels from any panel.
  • Creating cause-and-effect scenarios between devices that are connected to panels in a network.

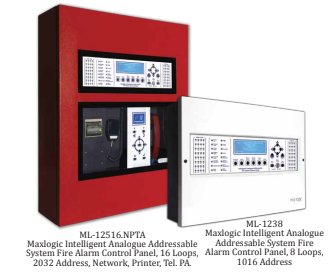

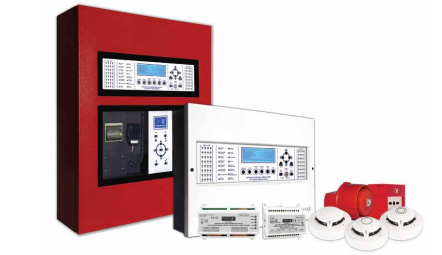

Maxlogic Intelligent Addressable Fire Alarm
Control Panels

  • Compatible with EN 54-2 and EN 54-4 standarts.
  • Production with Surface Mounting Technology (Surface Mount Technology = SMT).
  • The key is needed for entry to panel menu.
  • Expandable loops up to 16 loops, max. 2032 address capacity for each panel.
  • 4 different language options ( TR, EN,RU,FR) for menu,serigraphics and software.
  • Real Time Clock.
  • Day/Night working mode, pre alarm and contamination warning.
  • 1000 automation scenarios can be created for each panel.
  • 1000 event log memory.
  • 4 programmable supervised remote control inputs.
  • Supervised sounder, fire relay, alarm relay and fault relay outputs.
  • Supervised peripheral devices, extension cards (power supply, loop extensions, printer..).
  • Input/output modules can be connected to panel.
  • Advance parametric arrangement options for input/output devices.
  • Mutable/non-mutable, latching/non-locking options for all outputs.
  • Communication interrupt for fast fire detection in 1.5 sec


7” TFT Mimic Panel

  • It can be connected to the network line formed by the control panels like a repeater.
  • Ability to transfer the building projects drawn in the computer
    environment to the mimic panel as a map via SD card.
  • Fire event can be monitored graphically according to inserted map configuration.
  • Automatic or manual navigation between the maps in case of fire.
  • Possible sending information: Alarm / Silence Alarm / Reset to all panels in the network.
  • Mimic Manager Software for easy programming via PC.
  • Layered monitoring for each device.
  • Displaying the date/time information of the current event from the menu when the fire event occurs, and detailed device information of the device from which the fire event occurred.
  • Sound warning in case of fire thanks to the internal buzzer.

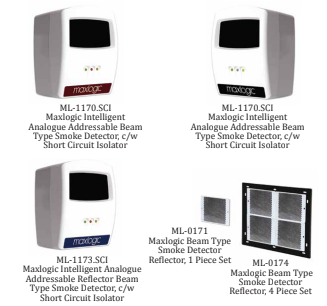

Beam Type Smoke Detectors

  • Short circuit isolator option.
  • 2-digit numeric display for easy commissioning, programming facilitating buttons.
  • LED indicators for power, fire and fault conditions.
  • Ability to adjust itself to polluted and dirty environment.
  • You can easily adjust three sensitivity levels.
  • Continuous control of communication against the faults.
  • Reflective beam type smoke detector consists 2 parts as a receiver/transmitter unit and a reflector. The unit and reflector should be mounted facing each other, with a distance of 5-35 meters for 1 reflector and 5-50 meters for 4 reflectors.

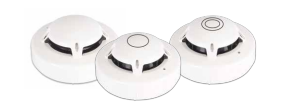

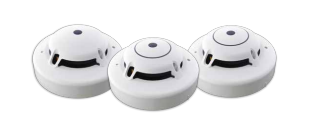

Intelligent Addressable Fire Detectors

  • Compatible with EN 54-5, EN 54-7 and EN 54-17 standards.
  • Microprocessor-controlled.
  • Twin-ire alarm indicators for 360° viewing.
  • RY LED that lights red in alarm status and yellows in case of contamination and fault.
  • Remote indicator output.

ML-1110.SCI Intelligent Addressable Optical Smoke
Detector, with short circuit isolator
Addressable Fire Detection and Fire Systems utilize the IR light scatter principle in their photoelectric smoke detectors. The chamber is designed for protection from dust, insects, and other external interferences. Through a short circuit isolator, the line is isolated in case of a short circuit.

ML-1130.SCI Intelligent Addressable Heat Detector, with short circuit isolator
Heat detector detects temperature change by temperature-sensitive thermistors. The detector can work either as a fixed heat or rate of rise heat detector. In case of a short circuit, the line is isolated through the short circuit isolator.

ML-1140.SCI Intelligent Addressable Multisensor Detector, With Short circuit isolator
The multi-sensor detectors have a photoelectric smoke detection chamber and a temperature-sensitive thermistor. The design of the chamber protects against dust, insects, and other external interferences. In case of a short circuit, the line is isolated through the short circuit isolator.

ML-1150.SCI Intelligent Addressable

  • Clip-on contact to avoid contact.
  • Compatible with ML-0140 ve ML-0141 series mounting bases.
  • Compatible with ML-0121 series surface mounting back box.
  • Compatible with ML-0150 series recessed mounting base.
  • Easy mounting and dismounting.

ML-1150.SCI Intelligent Addressable Carbon Monoxide Detector with Short Circuit Isolator
Addressable Fire Detection and Fire Systems smart carbon monoxide detector interprets the carbon monoxide analog values detected at its location, converts them into a fire signal using advanced electronic circuits, and transmits it to the fire alarm panel. It detects the amount of carbon monoxide in the area with its electrochemical sensor and generates a fire signal. In case of a short circuit, the isolator isolates the line.

ML-1160.SCI Intelligent Addressable Multisensor (CO+A1S Class Heat) Detector with Short Circuit Isolator
Intelligent addressable multisensor (CO+A1S class heat) detectors. Detect and interpret the ambient temperature with the thermistor and the amount of carbon monoxide in the location with the electrochemical sensor. If the ambient temperature reaches 60°C or if more than 50ppm of carbon monoxide gas is detected in the location, the system generates a fire signal. In case of a short circuit, the short circuit isolator isolates the line.

ML-1161.SCI Intelligent Addressable Multisensor (CO+A1R Class Heat) Detector with Short Circuit Isolator
Intelligent addressable multisensor (CO+A1R class heat) detectors detect and interpret the ambient temperature with the thermistor and the amount of carbon monoxide in the environment with the electrochemical sensor. When the ambient temperature reaches 60°C or a temperature increase specified in the EN 54-5 standard occurs, a fire is detected. Additionally, when more than 50ppm of carbon monoxide gas is detected in the location, a fire signal is generated. In the case of a short circuit, the line is isolated through a short circuit isolator.

Gas Detectors

  • Compatible with EN 50194-1 ve EN 50291 standarts.
  • LEDs can be used to follow faults on the detector and gas alarm events under normal operating conditions.
  • Can directly connect to the loop.
  • Built-in Buzzer.
  • Operation control of LEDs and buzzer with test button.
  • 5 years sensor life under normal operating conditions.
  • Relay output models.
  • Models can work with 230V AC or12/24V DC.

LPG and Natural-Gas Detectors
LPG (buthane + propane) and natural-gas (methane) are
hidrocarbon derivative explosive gases. The detectors respond
audible and visually, before the leakage reaches %10 LEL (lower explosive limit).

Carbon-Monoxide Detectors
Carbon-monoxide is a toxic gas with explosion risk. The detectors respond audible and visual, when the gas concentration reaches to 50 ppm (parts per million).

Surface Mounting Back Box
Surface mounting back box is compatible with all Maxlogic and Mavigard single field control modules and gas detectors.

Maxlogic Intelligent Addressable
Aspirating Smoke Detector

  • Mathematical modelling technology.
  • Short circuit isolator option.
  • Compatible with EN 54-20 and EN 54-17 standarts.
  • Ability to work Class A, Class B and Class C sensitivity.
  • Wide detection range: 0,005% – 20% (obs/m).
  • High sensitivity resolution: 0.0001% (obs/m).
  • Ability to separate dust and smoke.
  • Ability to work Single, U-Type, 2U-Type pipe installation systems.
  • Ability to give alarm with 4 Alarm levels: Warning, Pre Alarm, Fire 1 and Fire 2.
  • Adjustable fan speeds (1-10 levels).
  • 4 Alarm output relay (100mA @30V), 2 Fault Output relay (100mA @30V).
  • Operating status control via LED indicators.
  • Remote control function: Silence, Fault, Reset, Alarm.
  • IP30 protection level.
  • Programming over USB-PC.

Superflow Air Duct Sampling Unit

  • Compatible with EN 54-27 standarts.
  • Single-pipe air sampling system Super low patented venturi tube and duct casing.
  • Test hole placed in top cover.
  • Easy mounting.

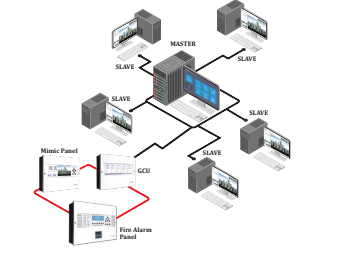

Communication of Intelligent Addressable Systems GCU / SGC

  • Maxlogic SPRVSR+ software enables communication with the GCU over TCP/IP without any distance limitation, near or far.
  • With the GCU module, it is possible to interact with building management systems over the Modbus/Bacnet protocol.
  • Connecting options of advanced modular structure with up to 16 expandable communication modules.
  • Maxlogic SPRVSR+ software can communicate with up to 63 fire alarm panels connected to the loop or networked over a single GCU.
  • SGC modules contains 4 inputs (“System Fault”, “Warning”, “Fault”, “Fire”) and 4 outputs (“Alarm Cancel”, “reset”, “Alarm”, Evacuation”) in order to monitor and control other Systems with Maxlogix SPRVSR+ Software.
  • Thanks to Maxlogic SPRVSR+ Android/IOS software, the user does not need to be at the computer for the control and monitoring of the fire alarm system.
  • Thanks to its redundant working structure, advanced reliability, and Uninterrupted communication is provided.

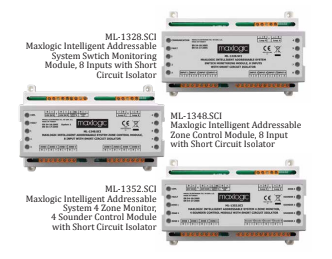

Intelligent Addressable System
Input / Output Modules

  • Compatible with EN 54-17 and EN 54-18.
  • Optional short circuit isolator models.
  • Operating status control via LED indicators.
  • Easy mounting with the rail system.

Adjustable Capacity for 8 inputs/ Outputs
Maxlogic Intelligent Addressable System Modules offers a selection of needs with; Relay Control with 8 outputs, Contact Monitoring with 8 inputs, Sounder Control with 8 outputs and Zone Control Modules with 8 inputs.

There are also options for 4 Contact Monitoring and 4 Relay Control Modules, as well as 4 Zone Monitoring and Sounder Control Modules for the needs of the area.

The status of the input/output lines can be easily monitored with the LEDs on the modules, along with the Communication and Error statuses.

Adjustable Capacity for 6 Inputs/Outputs
There are addressable Relay Control with 1 output capacity, Contact Monitoring with 1 input capacity, Sounder Control with 1 output capacity and Zone Control Modules with 1 input capacity which provides ease of rail mounting.

The LEDs on the modules allow for monitoring of System Enabled, Communication, Fault, and Alarm states.

In this model option, Input/Output (I/O) modules are available to be used as 2 zone monitoring inputs, 1 sounder output, or 2 dry contact monitoring inputs and 1 dry contact relay output.

You can select 4 dry contact monitoring inputs and 2 dry contact relay outputs with the 4/2 Input/Output (I/O) module.

Intelligent Addressable Smoke Damper Modules

  • Comply to EN 54-18, models with short circuit isolators comply with EN 54-17 standards.
  • Controlling the damper motors and monitoring the position switches with a single address.
  • The operating information of the module is conveyed by LEDs: power is indicated by a green LED, a fault is shown by a yellow LED, an alarm is represented by a red LED, and a green LED lights up continuously when the damper is open or closed (the green LED flashes when the damper is opened or closed).
  • 220V AC, 24V DC, and 24V AC operating voltage options to suitable for all smoke dampers.
  • On / Off buttons for manually opening and closing the damper, On / Off inputs for switching on and off with a remote control.
  • Open / Short circuit monitoring of damper remote control inputs.
  • Display of Open, Closed and Damper Fault positions of the damper module cover.
  • The panel event logs and the screen of the panel show the locations of the dampers that are open, closed, and have damper faults.
  • Damper output line, remote control input, position monitoring input, and detection of open/short circuit faults.
  • Ability to assign “Zone Number” and “Location Information” to modules with Loop Manager+

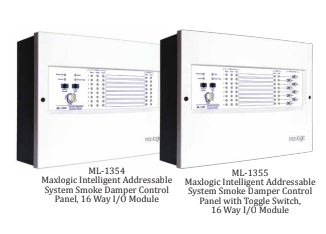

Smoke Damper Control Panels

  • Compatible with EN 54-4 and EN 54-18 standards.
  • The LED indicators can display Open/Closed/Fault conditions based on the position information received from the smoke dampers.
  • The 5-degree position of the position switch indicates “OFF STATUS” and the 85-degree position indicates “ON STATUS”.
  • Easily programmable with Loop Manager+ software.
  • In all cases except the Closed or Open status of the dampers, the LED indicator can show an error message at the end of the timeout period, which the user can determine.
  • The SPRVSR+ software or the user can control the intelligent addressable smoke damper control panel automatically or manually.

Announce / Alarm Matrix Panel

  • Compatible with 19”, 3U rack and modular structure expandable up to 16 modules.
  • You can select modules as an announce microphone input and/or programmable alarm/warning output.
  • Ability to perform announcements with 1 announce microphone to 32 announce zones and with 60 announce microphones to 8 announce zones.
  • Possibility to perform announcements with pre-recorded messages in required zones.
  • Internal Power Supply.
  • Notification of communication, fault, active alarm/warning conditions with LED.
  • Making live announcements to the desired area of the building via the existing announcement system and/or making automatic announcements with recorded voice recordings.

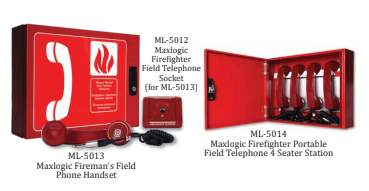

Firefighter’s Telephone Control Unit

Firefighter’s Telephone Control Unit
Through the Firefighter’s telephone unit, no need to dial to call the fire telephones on panels and the security center of the Firefighter’s telephones. When any user calls the security center, other users can the user will be automatically involved by picking up the handset, and the conference call can be done without any intervention from the operator.

FireFighter’s Telephone Unit
The Firefighter’s Telephone Unit can be applied in a different location from the panel and can be integrated into communication with the system.

In case of an emergency, lifting a handset of firefighter’s telephone or inserting a portable firefighter’s telephone handset
in the socket and without the need of dialing any number automatically calls the security center by “hot line” feature.

Intelligent Addressable Loop-powered
Base Sounder / Sounder Beacon /
Mounting Base c/w Buzzer

  • Compatible with EN 54-3 and EN 54-23.
  • Special design for indoor use.
  • Audible and/or visual warning in case of fire.
  • It is fed from the loop line.
  • High sound intensity 85dB, 8 different tone options, and sound volume Control.
  • You can use it as a stand-alone siren/beacon on the ceiling or wall.
  • Saving on cabling and installation costs as it performs detection and alarm from the same point under smart addressable detectors.
  • Can include cause-and-effect scenarios.

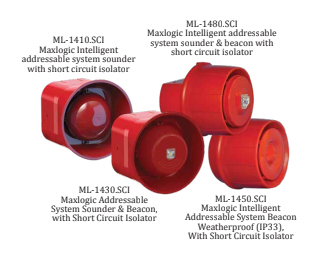

Addressable Intelligent System Sounder /
Beacon / Sounder & Beacon / Weatherproof

  • Compatible with EN 54-3/EN 54-23.
  • Short Circuit isolator models compatible with EN 54-17.
  • Soft addressable by use of an address programmer.
  • Easily programmable by Loop Manager.
  • Able to integrate into the cause-and-effect scenarios.
  • IP33 / IP65 high protection class options.
  • Compatible with MAXLOGIC series addressable panels.
  • PCB is protected by a metal case.
  • Aesthetic design.
  • Production by surface mount technology.
  • Outstanding and stable running performance.
  • Adjustable, different 32 voice tone options.

Intelligent Addressable Manual Call Point

  • Compatible with EN 54-11/EN 54-17.
  • Surface mount or flush mount.
  • Microprocessor-controlled.
  • Short Circuit İsolator models.
  • IP 65 Protection Class option.
  • LED indicated activation.
  • Easy resettable.
  • Outstanding and stable running performance.
  • Interrupt feature for detecting a fire alarm within 1.5 seconds.
  • Production by surface mount technology.

Addressable Corded Emergency Panic Button

  • Designed to transmit emergency events fast and correctly, via an addressable system that may occur in bathrooms and WCs like hospitals and hotels.
  • Easy Access and use.
  • Convenient and ergonomic design.
  • Compatible with surface and flush mount technology.
  • Doesn’t need a mechanical reset.

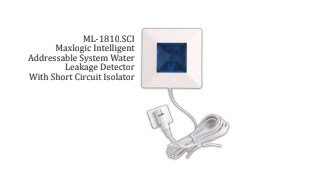

Intelligent Addressable Water Leakage Detector

  • Special design for places with a risk of water leakage.
  • Activation with an LED indicator.
  • Loop powered.
  • 1.5-meter cable and sensing probe.
  • 20 m2 protection area.

SMPS Power Supply

  • Compatible with EN 54-4.
  • In the case of electrical failure, the system supplies itself with a battery.
  • Automatic battery charge circuit.
  • Battery temperature measurement and automatic adjustment of battery charge voltage with thermistor.
  • The power supply can detect and monitor Earth Fault, battery fault (Charge error, battery low voltage, no battery connection), fuse fault, and mains fault.
  • Dry contact output report the case of faults.
  • Over current and short circuit protection.

Recessed Mounting Base & Address Numerators

Addressable Fire Detection and Fire Systems use recessed mounting bases to install conventional as well as addressable detectors on false ceilings of various types (metal, plaster, etc.). The base allows for more aesthetic architectural applications. Manufacturers produce bases from ABS, and the bases match the color of the detectors. Installers flush-mount the bases into the ceiling using two clamps and stainless steel screws.

You can easily use ergonomic address numerators, and according to the address numbers, you can mount them directly under the detector sockets in normal ceilings and under the suspended ceiling unit in suspended ceiling applications to provide great convenience in finding.

The relevant device in any case (fault, malfunction, pollution, etc.). It is compatible with all ML / MG series detector sockets and suspended ceiling units.

SPRVSR+ Graphical Monitoring and
Management Software

  • SPRVSR+ It plays a role in the monitoring and management of Intelligent Addressable Fire and Gas Detection Systems and their interaction with other systems.
  • In Cases Requiring Intervention; Silence Alarm, Alarm, etc. Commands can also be sent via SPRVSR+.
  • Thanks to the Zoom In / Out feature, a detailed examination on the map.
  • During an incident, instant or daily reporting, including the type, date, time, etc. of the event, sending SMS or E-mail, viewing incident records, saving, and printing options.
  • The ‘Easy Display’ screen within the SPRVSR+ program allows users to track convenience, create reminders, and perform control operations such as database backup and restore.
  • You can activate or deactivate detector contamination measurement. You can set measuring periods for contamination monitoring of detectors.
  • Using the Simulation option allows users to control maps, devices, and system operation with an unreal fire event.
  • Mobile monitoring and management with Android/IOS software option.

SPRVSR+ Master – Slave
Functioning

For startup management and control of connections with all GCUs, there must be at least 1 Master SPRVSR+ in the system.

You can perform monitoring and some limited control operations from the computer with the Slave SPRVSR+ software.

SPRVSR+ Easy Indicator

Integration Capability

SPRVSR+ software offers important solutions in the control of fire and gas detection systems by integrating with roof software that aims to monitor and manage different systems such as BMS (Building Management Systems), VMS (Video Management Systems) from a single center.

SPRVSR+ software has developed the ability to integrate into Access Control systems. Accessing the card pass devices through the map allows users to easily give commands, such as opening and closing doors, and to make live connections to cameras that match the device.

When the card readers on the doors read an authorized or unauthorized card while the system is active, you can view the interaction on the map and obtain the details from the event records.

Rate this page

Do you want To Buy It?

Get Quotation
